JC5636

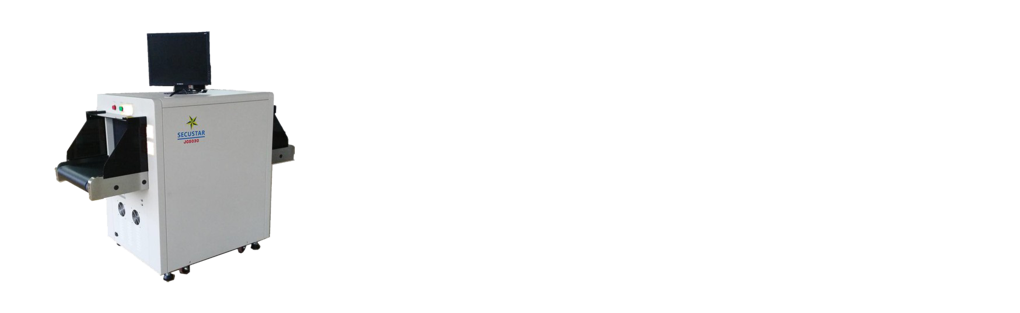

X Ray Baggage Scanner JC5636

SMALL BAGGAGE / HAND CARRIED ITEMS
This product is designed for tourist attractions, shopping malls, supermarkets, sports centre, big hotels, railway- stations, docks, airports, prisons, public security organs and other crowded places design.
Strict internal quality control, engineering and production of double-check the implementation of the principle of the whole part of safeguards by the European Union CE certification through the ISO9001 quality management system certification and ISO14001 environmental management system certification by OHSMS18001 occupational health and safety management system certification through the National Ministry of Public Security Testing Centre by the Guangdong Provincial occupational health Testing Centre received national radiation safety license certification State Intellectual Property Office a number of utility model patents, the State copyright Bureau of computer software copyright registration certificate products unique advantages.

Features:

  • International Brands Accessories: USA SPELLMAN X-ray sources, Finland DT detectors, Germany, INTERROLL roller, more stable performance;
  • Leading Technology: parallel data transmission technology, compared with other similar products faster transmission network 10-20 times;
  • Fully Functional: not only has the networking equipment, image storage and printing output function and can be customized according to customer demand other functional modules; TIP, Self-diagonal, user manage
  • Easy to Use: the simple user-friendly interface, allowing users to easily use the device;
  • HD Display: with high-definition 19” LCD display, an image displays more delicate, resolution of 1920 x 1080;
  • Mass Storage: direct to disk storage quantities greater than 150 000, and direct call to check;
  • Energy Saving and Environmental Protection: the machine can automatically censor objects, luggage before putting the machine up and running; no object when stationary;
  • Off Key: simply rotate the shutdown key, the device automatically shut down safely reduce equipment failures.
  • Intelligent Conveyor : When putting the bags on the conveyor, it will start to work automatically.
  • Environmental Design: Lead screens protective film to prevent exposure to lead guests hand to avoid lead contamination. The machine Net weight is 250kg .

Basic Parameters:

  • Tunnel size 560 (width) × 360 (H) mm
  • Conveyor speed 0.2 ± 0.02 m / s
  • Conveyor height :745mm
  • Penetration: 32mm steel
  • Wire resolution: 38AWG guarantee,40AWG typical
  • Conveyor Max Load 160 kg
  • Safety film on the ISO1600 security

X-Ray Generator:

  • The beam direction of the bottom-upwards
  • Tube current 0.4 ~ 0.7 mA (adjustable)
  • Tube voltage 140 -160kV (adjustable)
  • Ray beam divergence angle of 60 °
  • Cooling / working periods sealed oil cooling / 100%
  • Single Dose Rate: < 0.05 µGy
  • X-Ray Leakage: <0.1 µGy/h (at 5 cm from external housing).

Image Processing System Parameters:

  • X-ray sensor L-shaped photo diode array detection (dual energy), 24bit depth
  • Display high-resolution -inch 19” LCD display, tidy and completely high clear images on screen.
  • Color images displaying 24-bit true color display. organic , inorganic and mixed material distinguish.
  • Edge enhancement contour edges of objects more clearly
  • Super image enhancement image details more clearly
  • High penetration displays image contrast in bright areas to improve, so as to penetrate the area clearly
  • Low penetration display improves image contrast in dark areas, so as to penetrate the area more clearly
  • Magnifier local amplification,Zoom 2X — 16X or continuous zoom to 64X
  • Brightening / dimming brightness of the image to increase / decrease the brightness of dark images
  • Image pull back / front pull the front display all the images, and the current image can be any image processing
  • Image restoration image display restored to its original state
  • Save any image stored images in real time, and can be any image processing, continuous work to save.
  • Density alarm, when the machine scan high density object that is hard to penetrate, the machine will alarm.

Use of The Environment Parameters:

  • Operating voltage 220 VAC (± 10%) 50 ± 3 Hz
  • Power consumption 0.6KW (Max)
  • Noise level <55 dB
  • Operating temperature/humidity 0?-45?/20%-95%(non-condensing)
  • Storage temperature/humidity -20?-60?/20%-95%(non-condensing)

Dimension size(mm) :
