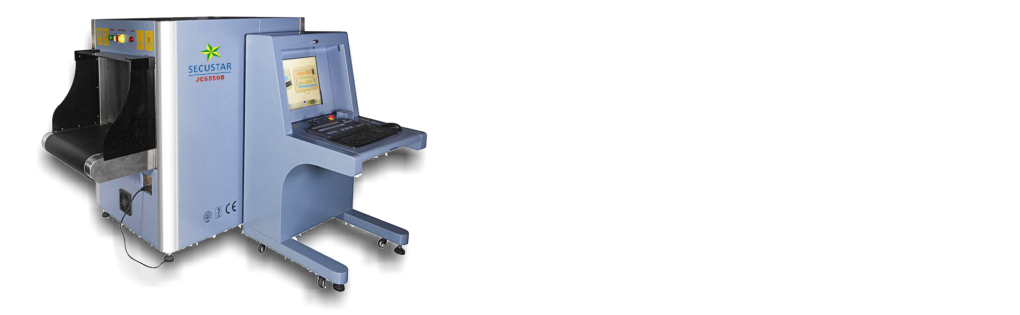

JC6550
Model: JC6550
General Specification
- Tunnel Size: 653(W)mm * 505(H)mm
- Conveyor Speed: 0.22m/s
- Conveyor height : 69cm
- Conveyor Max Load <175kg
- X ray Dose per inspection <1.7uSv
- Wire Resolution:38AWG Guranteed,40AWG typical Normal version
- Spatial resolution Level: dia1.0mm,Vertical: dia1.0mm
- Penetration: 32-38 mm steel guaranteed
- Film Safety Guaranteed ISO1600 Film
- X-ray Leakage: <0.5 µSV /h (at a distance of 5cm from external housing)
Image System
- X-ray Sensor: L-Shaped Photodiode Array (multi-energy) .
- Monitor: High Resolution Color, LCD 17 inch
- Image Processing: Edge enhancement, image strengthening, image lightening, darkening,
- Image retrieval, Images presentation: White/Black, color
- Image gray level: 4096 or 65536; Image Max Resolution: 1024 * 1280 pixels
- Image Processing: 24 bit processing in real time
- Image storage: Storage 120000 pictures in real time
- Zoom: 2 to 64 Times Enlarge, Whole screen continuous observation
- Selective detection of Objects by atomic number, organic objects in orange, inorganic objects is blue and mixture is green B
- High-energy/low energy: switch from high energy to low energy
- Assist to detect drug and explosive powder
- TIP functionFAutomatic identification of threats such as knives, guns, etc.
- Alarm: Dangerous objects alarm and density alarm (audible and visible alarm)
X-ray Generator
- Generate direct: Upward
- Generate anger: 80 degree
- Anode Voltage: 140-160iadjustablej
- Anode power: 0.4 to 1.2mA
- Cooling / Duty Cycle: Oil Cooling /100%
Operating Environment
- Operation temperature/Humidity: 0Ž-45Ž/20%-95% (non-condensing)
- Storage Temperature/Humidity: -20Ž-60Ž/20%-95% (non-condensing)
- Operation Power: 220V AC(±10%)50±3Hz
- Power Consumption: 1.0 KW (max), 1.0 KW(working)
- Noise: <58db, Keyboard Protection: IP43
- Machine Protection: IP20, Extension Rollers: Optional
Dimensions
