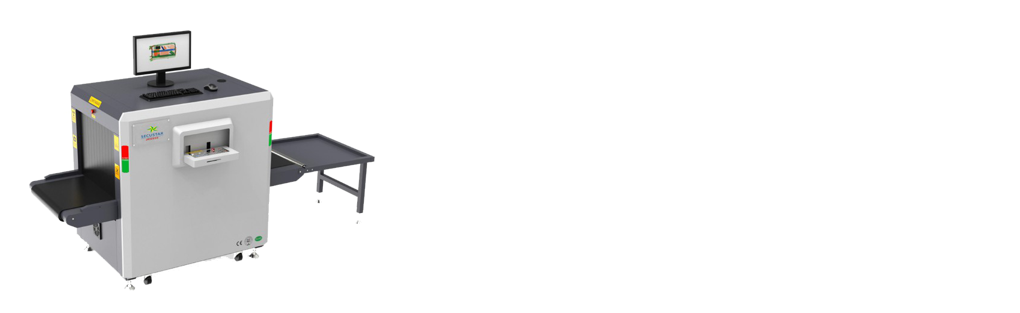

JC6550 Panel Scanner

Model: JC6550 Panel Scanner

  • Leading Technology: parallel data transmission technology, compared with other similar products faster transmission network 10-20 times; Multi-functions console with touch mouse that built on side of machine.
  • Fully Functional: not only has the networking equipment, image storage and printing output function and can be customized according to customer demand other functional modules;7kinds color, TIP, Self-diagnostic, user management. Count automatically.
  • Easy to Use: the simple user-friendly interface, allowing users to easily use the device; with extension trays.
  • HD Display: with high-definition 22” LCD display, an image displays more delicate, resolution of 1920 x 1080;
  • Mass Storage: direct to disk storage quantities greater than 150000 images, and direct call to check;
  • Energy Saving and Environmental Protection: the machine can automatically censor objects, luggage before putting the machine up and running; no object when stationary;
  • Off one Key: simply rotate the ON/OFF key, and the device automatically boot or shut down safely.
  • Environmental Design: Double-deck Lead curtains to protective ,it is useful to prevent x rays leakage.
  • Computer specification: I5 intel CPU, windows10system,512G harddisk. Support network remote control.
  • Intelligent Conveyor : while putting the bags on conveyor, the machine will start to work automatically .
  • Automatically Calibration when boot the machine , also with manual calibrate for x ray system.

General Specification

  • Tunnel Size: 650(W)mm * 505(H)mm
  • Conveyor Speed: 0.2 ± 0.02 m/s
  • Conveyor height : 650mm
  • Penetration: 32 mm steelWire resolution 40AWG guarantee
  • Belt load: Max 175 kg
  • Security Film: ISO1600 security

X-ray Generator

  • The beam direction of the bottom-upwards
  • Tube current 0.4 ~ 1.2 mA (adjustable)
  • Tube voltage 140-160 KV (adjustable)
  • Ray beam divergence angle of 80°
  • Cooling / working periods sealed oil cooling / 100%
  • Single Dose Rate: < 0.05 µGy
  • X-Ray Leakage: <0.1 µSv/h (at 5 cm from external housing)

Image Processing System Parameters:

  • X-ray sensor L-shaped photo diode array detection, 32bit depth
  • Display high-resolution -inch 22” LCD display, tidy and completely high clear color image.
  • Color images displaying 32-bit true color display, Zoom is 1-64x
  • Organic display orange, inorganic is blue, mixed material is green, hard penetration object is black.
  • Edge enhancement contour edges of objects more clearly, organic and inorganic distinguish.
  • Super image enhancement image details more clearly, and gray scanning to distinguish materials.
  • High penetration displays image contrast in bright areas to improve, so as to penetrate the area clearly
  • Low penetration display improves image contrast in dark areas, so as to penetrate the area more clearly
  • Magnifier local amplification, just need to move the mouse to enlarge or drag the images on the screen.
  • Brightening / dimming brightness of the image to increase / decrease the brightness of dark images
  • Image pull back / front pull the front display all the images, and the current image can be any image processing
  • Image restoration image display restored to its original state. Assistance detection of drugs and explosive
  • Save any image stored images in real time, and can be any image processing, jpg,png,bmp and other formats.

Use of The Environment Parameters:

  • Operating voltage 220 VAC (± 10%) 50 ± 3 Hz
  • Power consumption 0.8 KW (Max)
  • Noise level <58 dB
  • Operating temperature/humidity 0 ?-45?/20%-95%(non-condensing)
  • Storage temperature/humidity -20?-45?/20%-95%(non-condensing)
